A complex of three buildings. Two of them were old and heritage listed. The third was an unfinished new block. The former investors went out of business.
A new investor wanted to turn the complex into a retirement village with a wellness centre attached.
My job was the design and documentation for one of the old buildings and documentation for the new block.
Content:
Building 24

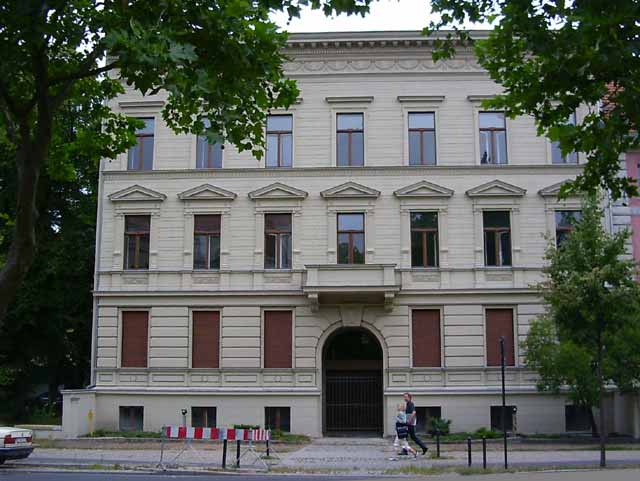

Design and DocumentationThis building had a heritage listed front view. It had a difficult floor plan. By turning the main stairs 180 degrees around the problems could be solved.
It contains now 19 1-2 bedroom apartments for elderly tennants.
Procurant Homepage (German)
Blueprint: Elevations

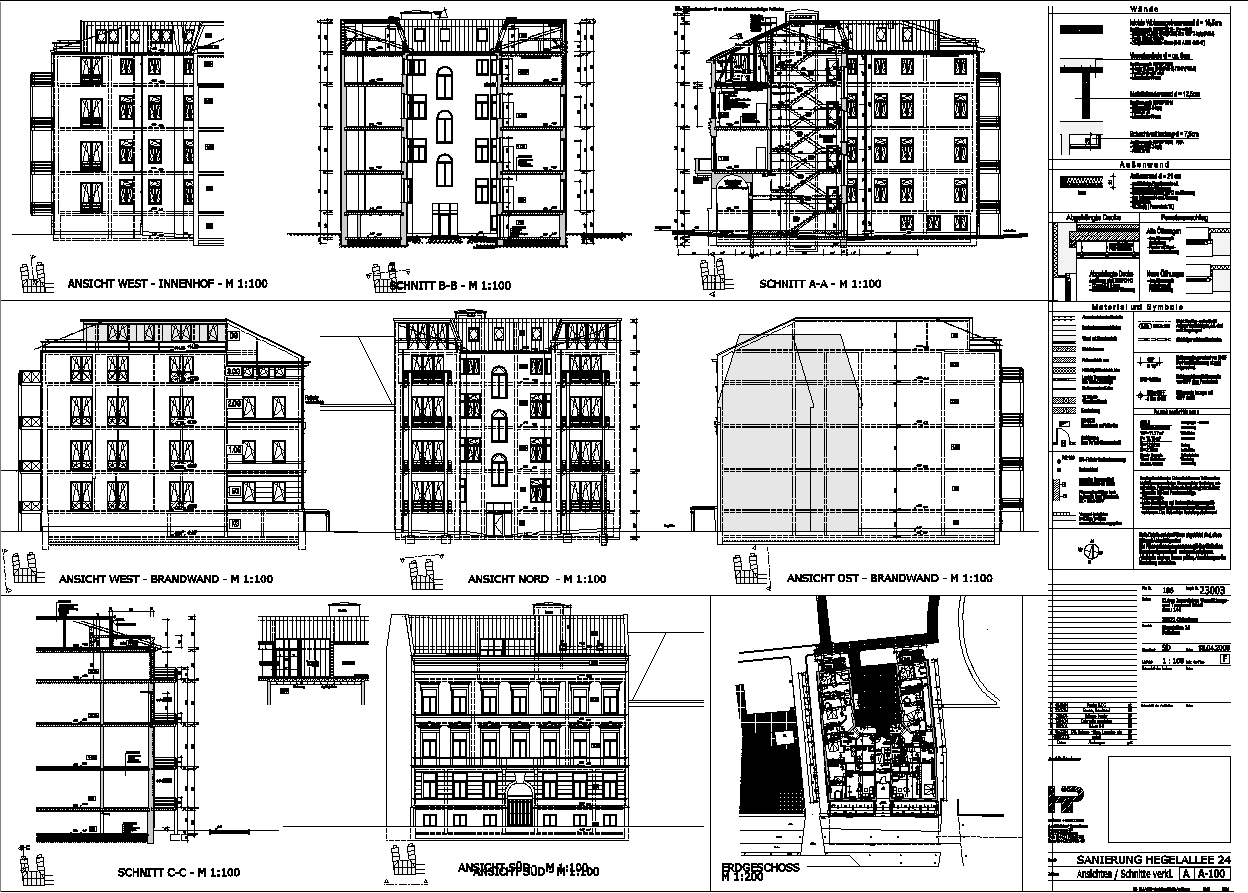

This blue print was only used as an overview sheet. It contains scaled down drawings from all elevations.
Ground Floor

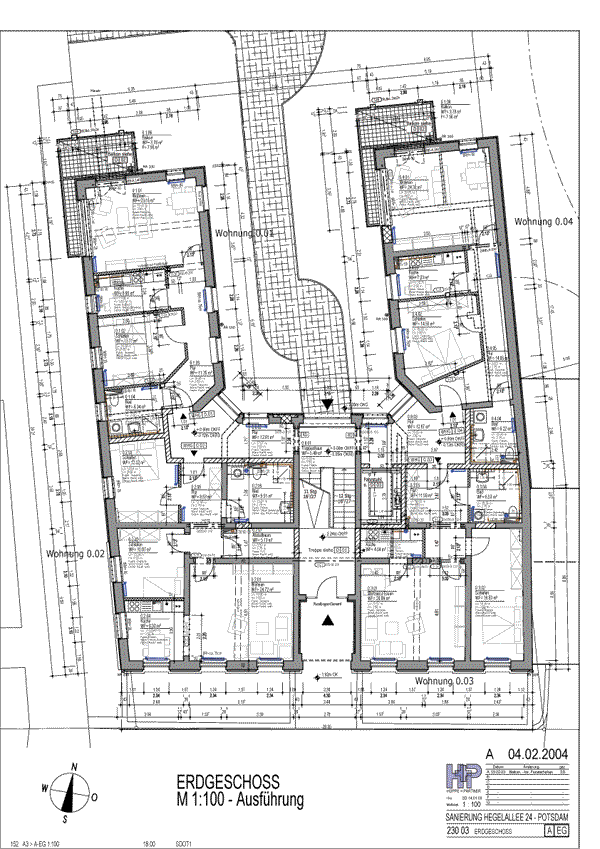

The ground floor documentation drawing. (Here: scaled down to A3).I usually have scaled down versions of the original drawings to look at in meetings or to send as attachments.

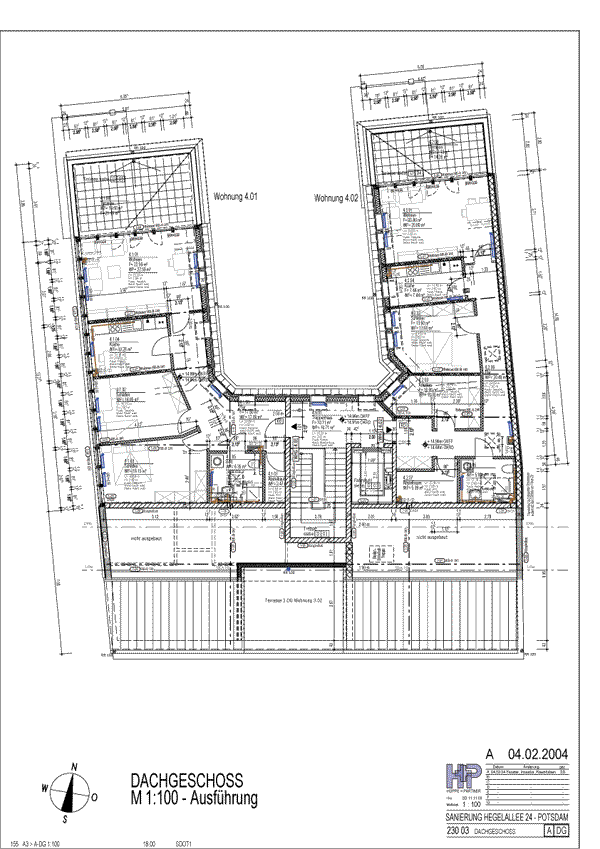

The top floor documentation drawing. (Here: scaled down to A3).
Detail of the new stairway

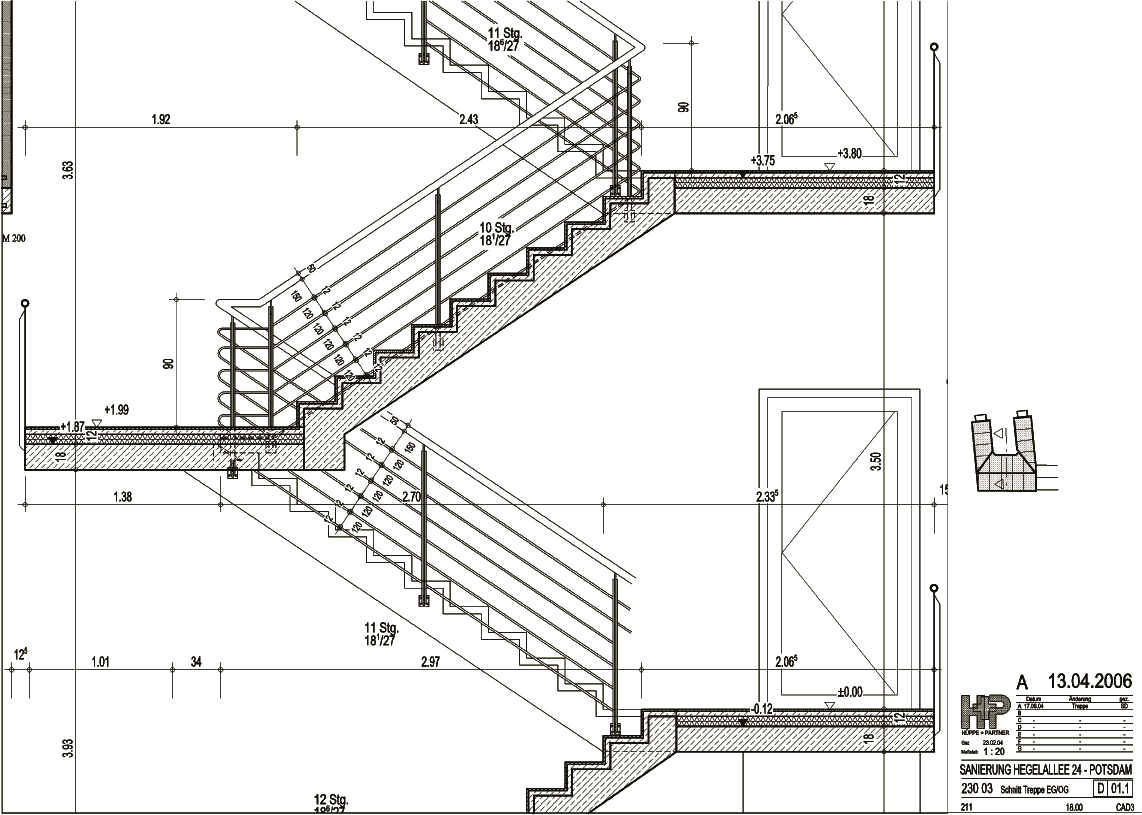

A 1:20 detail of the new set of stairs. Click on the image to see a larger version in the gallery (gif).
Detail of the roof balcony
A 1:20 detail of the top floor balcony. Click on the image to see a larger version in the gallery (gif).
Detail of a balcony

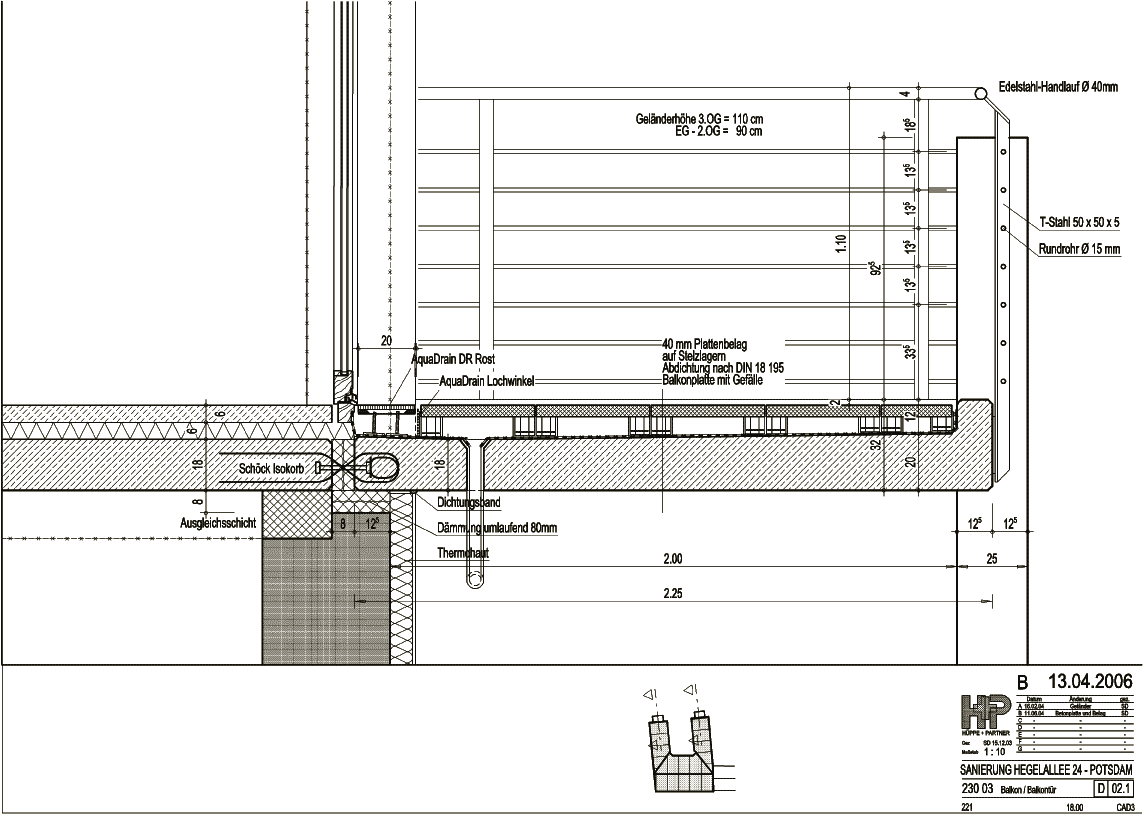

A 1:20 detail of a balcony. Click on the image to see a larger version in the gallery (gif).
Presentation of the new stairway.
A 3ds max render of the new staircase. This was the first time I used 3ds max to show the client how something might look like.
House 22

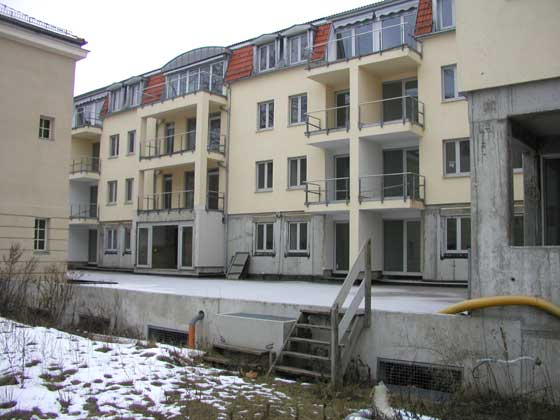

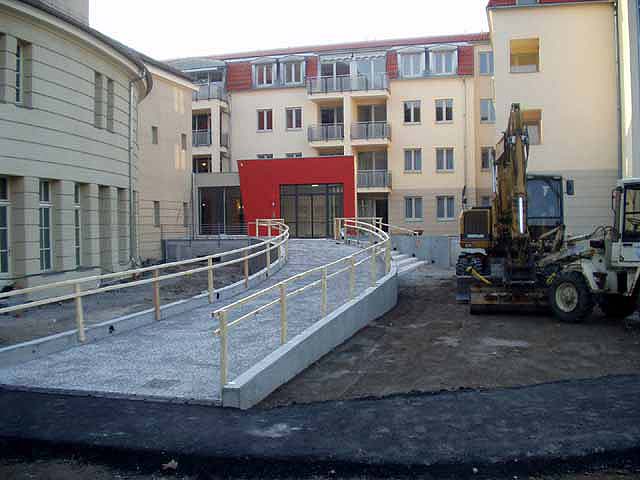

This half finished new building had to be redesigned to accomodate serviced appartments. It was supposed to be an appartment block but a former investor run out of money during construction.The building after the transition and almost finished. Landscaping is still missing.A larger meeting room and reception has been added in front of the building.
Ground Floor

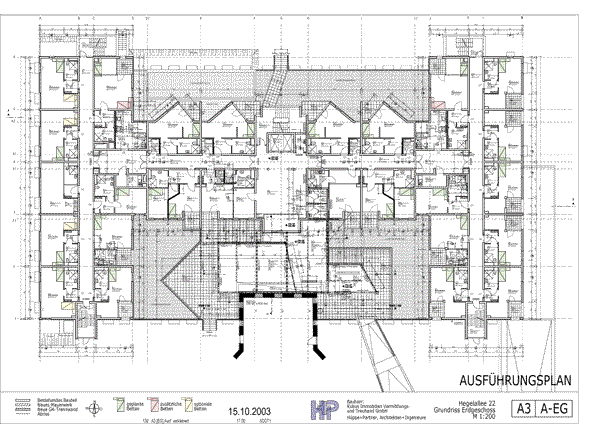

Documentation drawing of the ground floor of building 22. Here scaled down to fit onto a A3 sheet.
