Innovata Office Building
The building where Hüppe+Partner had its office located on the first floor.
The building had been built in several stages and styles and needed another extension. I designed a final solution although only the top floor of one wing has been built so far.
I did the design, detailing and documentation.
Content:
Completed Top Floor
The top level had to be constructed while the existing office still had buisiness as usual.The timber framework construction was prefabricated and errected in a few days. The new roof then was sealed within a week. We did precaution for rain but luckily there was no rain in during week.
Everything was finished within 2 months.
Hüppe und Partner
Note that the gutter is a bit inside the roof and not visible from the outside.
CAD Render
A render using our CAD software to demonstrate how the building would look like when two stages would have been completed.

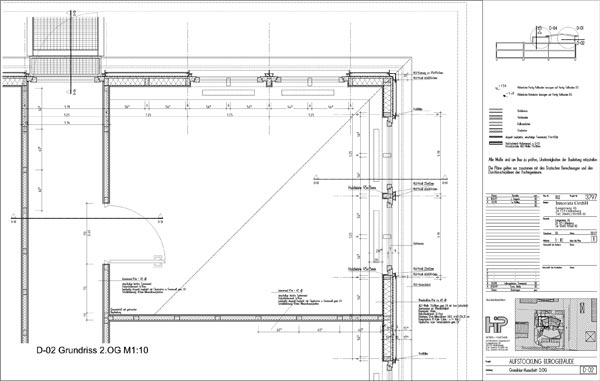

Blue prints
I decided that it would be better to show all details in 1-20 scale. This is the cut.
