Karuschenweg Village
A little village I worked on occasionally over many years. We used designs from other project as a base for most of the houses. Some others were provided by the investor.
I did all the councel approvements. I used a database to print all documents for the 44 applications. They filled a few folders.
On google maps most of the buildings seem to be completed now.
Google MapsContent:
Town Planning

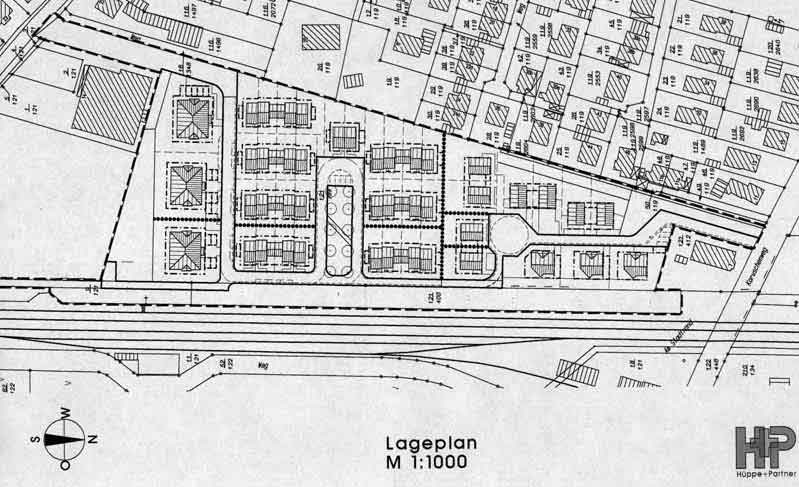

A 1-1000 scale plan of the complex.- 3 small appartment blocks
- 30 semi attached houses
- 11 free standing houses
Presentation

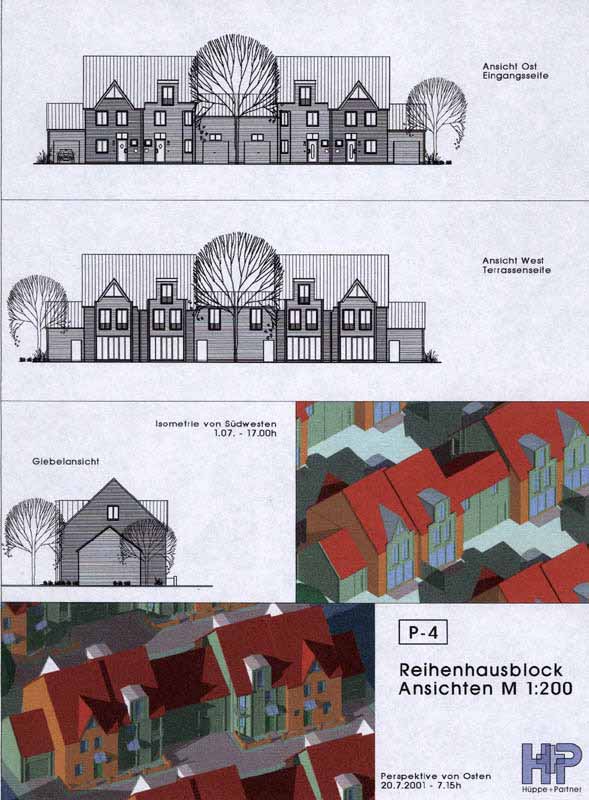

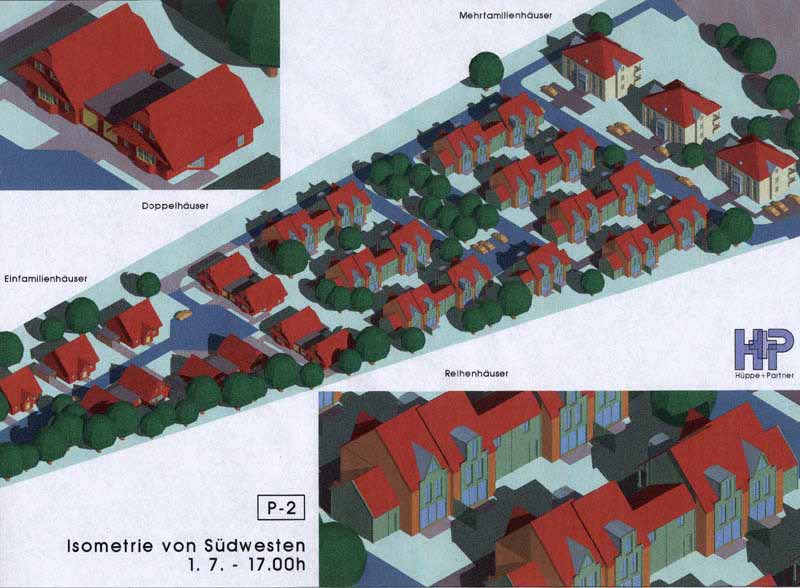

This is a CAD render of the houses. I did it a while ago with our CAD software. It isn't as good as the renders you get now but it gives everyone the idea of the village.
Because it where so many applications a used a database to create them.
Blue Prints

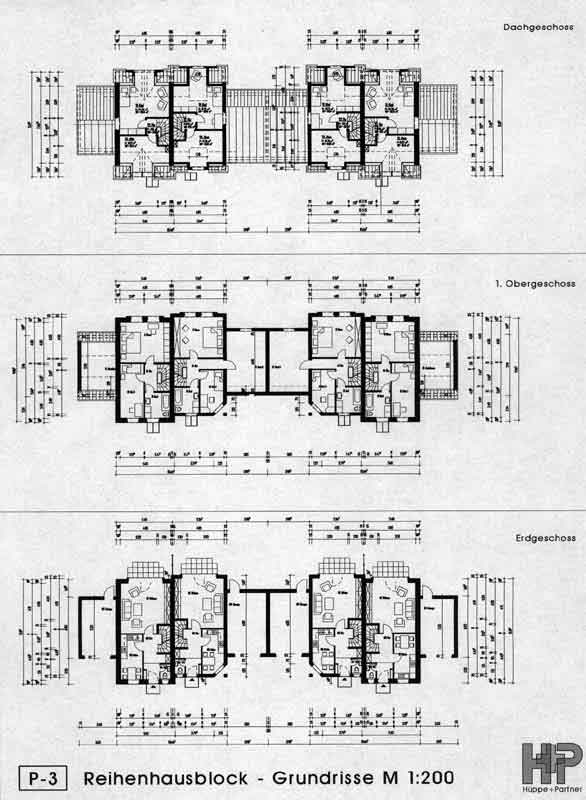

Floor plans of the semi attached houses scaled 1-200.
