Interactive Door Blueprint - Overview
Overview of the 2024 version of the Interactive Door Blueprint. Available on the Marketplace.
You can update existing projects with this version without the need to change anything. Except if you are using Custom door or frame mesh replacements. Then you need to use a tick box to enable those instead of the option from drop- down list.
Interactive Door Blueprint - MarketplaceContent:

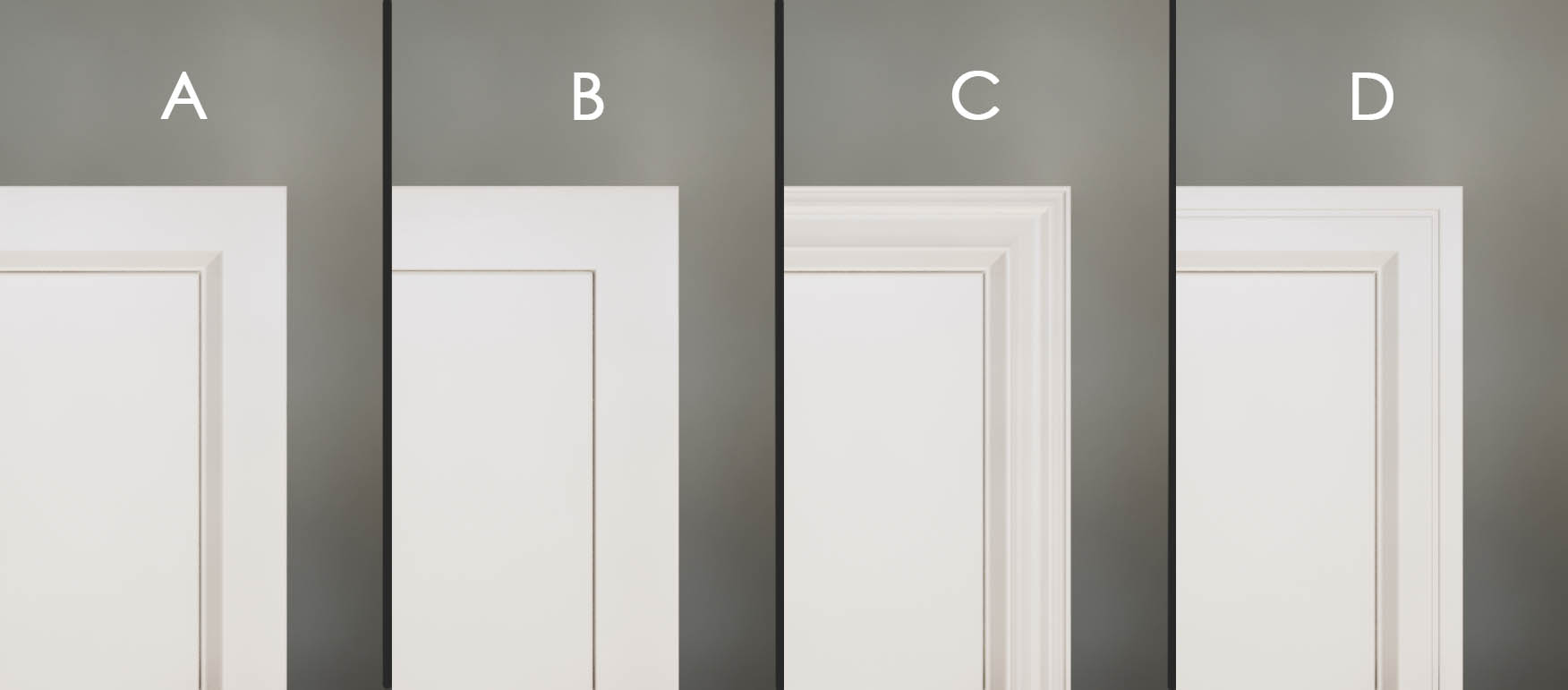

Frame Types
Frame Type | Select a frame style from the list |
- A - Standard works well with most doors
- B - Modern is simple and works well with doors type A and D
- C - Molded is traditional and works well with door types B and C
- D - Modern works well with door type D but has not sliding door frames at the moment.
Type X is a spare slot.
![image 01.jpg image](../images/architecture/2024/door-overview/01.jpg)
Door Sizes
Door Size | Select a size from the list. |
The list of door sizes has the most common architectural sizes from Europe, US and Australia. Those sizes are the ones you'll find in drawings and most likely not the actual size of any of the meshes.
The actual door sizes used are in brackets
- S - 720 x 2040 x 40 mm - (SH 720 x 2340)
- M - 820 x 2040 x 40 mm - (MH 820 x 2340)
- L - 920 x 2040 x 40 mm - (LH 920 x 2340)
Under The Hood
The size that is closest to the actual required size is chosen. Then the frame and door are slightly scaled to the required size. Hardware isn't scaled and is added afterwards. The scaling should be unnoticeable to anyone visiting or watching the scene.NOTE: The letters in brackets should be changed to S and SH. Where S is door with the normal height 2040 and SH is slightly higher with 2340 mm. I'll update this soonish.
![image 02a.jpg image](../images/architecture/2024/door-overview/02a.jpg)

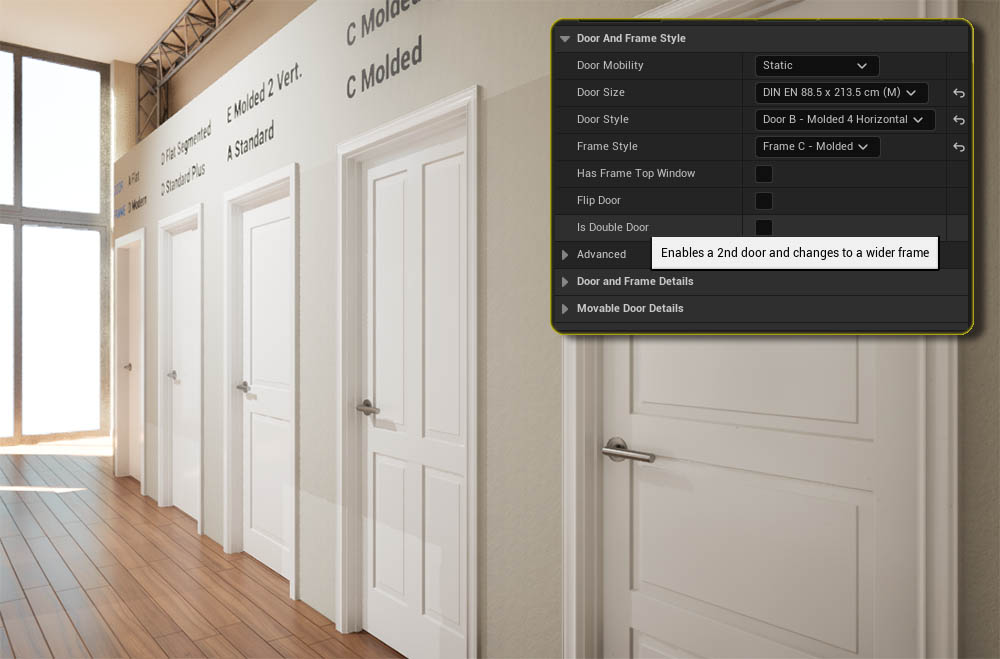

Double Doors and Top Windows
Flip Door | This will mirror the blueprint, so the handle and the hinges are on the other side. |
Is Double Door | Ticking this box will turn the single door into a double door. |
Double doors are available for Standard, Sliding, and Barn Doors.
Flipping the double door will work and can be used to move the opening door to the other side.
> Door and Frame | |
Has Top Frame Window | Ticking this will add a top frame with a window above the door |
This tick box will add a window to above the door. It works with Standard, Sliding, and Barn Doors. It works with single and double doors. Currently the frame is a standard style frame for all frame style options.
![image 03c.png image](../images/architecture/2024/door-overview/03c.png)
Opening Door
Door Mobility | Movable |
Set the door mobility to Mobile in the General settings to make the door movable. Single and Double Doors can be movable.
Auto Open | Disable to get a prompt for the door to open manually |
There are two types
- Auto Open - This is the default and opens the door if a user enters the yellow collision box. It closes if the collision is left.
- Manual Open - A prompt will appear to open the door. The door blueprint needs to be connected to the controller or with a blueprint interface. More in the FAQ section.
![image 04.jpg image](../images/architecture/2024/door-overview/04.jpg)
Materials
Materials are set in the Door and Frame section.Frame and Door can have multiple material IDs. Array index [0] is for the first (or only) material, index [1] is for the 2nd material.
Earlier version of Nanite do not support translucency, like glass materials. Therefor the glass can be a separate mesh and can have a separate material (optional). The main mesh can be Nanite enabled, while the glass remains a standard mesh.
Handles, Plates and Other Hardware have their own material slots.
The meshes are mapped to support Quixel or other materials. The UV scale is set to 100 x 100 cm.
![image 05.jpg image](../images/architecture/2024/door-overview/05.jpg)
Auto Fit Door
Some door meshes can be auto fitted. This works best with doors from the DoorsBPV2 package that are not made for the chosen frame size. There is an example in the level, shown in the image, with a door that is upscaled to the higher frame. It can also for any other door.- Enable Use Custom Door mesh
- Put the mesh into the Door Mesh slot
- Use the Door Rotation Correction to align the mesh relative to the frame rotation if necessary
- Enable Use Scale and Offset Values
- Click on Calculate Scale and Offset
The Scale and Location Offset can be adjusted if necessary. The calculation will be incorrect if something "sticks out" from the door mesh, like attached handles. In this case you would need to manually correct the values.
![image 06h.jpg image](../images/architecture/2024/door-overview/06h.jpg)
![image 07.jpg image](../images/architecture/2024/door-overview/07.jpg)

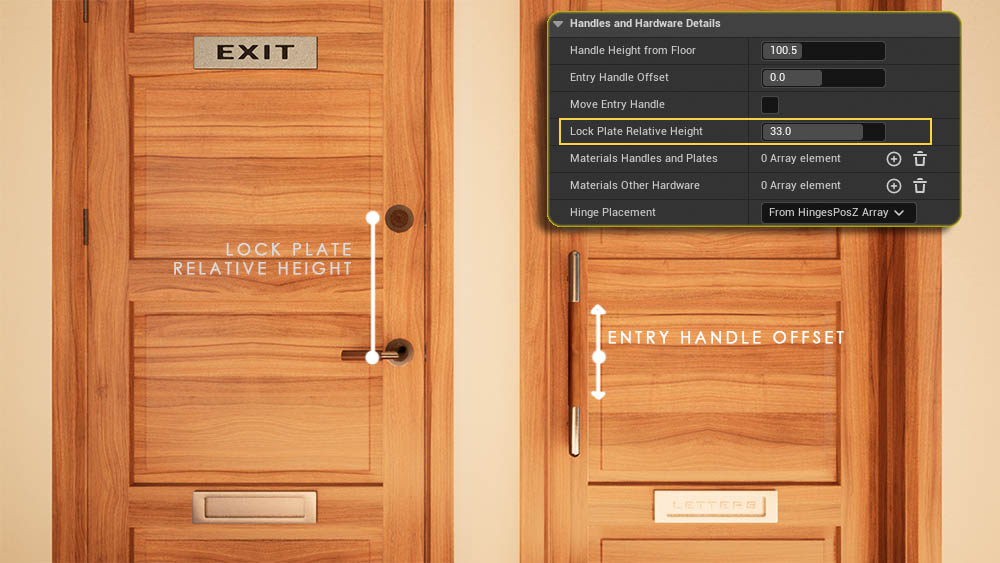

Hardware
Handles, Handle Plates, Hinges, and Shutter are automatically added to the door and frame meshes. Some handles are readily available in the project. There is also a small selection of replacements for the other hardware.![image 08.jpg image](../images/architecture/2024/door-overview/08.jpg)
Refer to the Customization page for more info about external sourced handles.
![image 09c.jpg image](../images/architecture/2024/door-overview/09c.jpg)
Content / Meshes / Hardware / ..
- Plates in a few styles and sizes
- Lock Plates
- 3 types of Hinges
- Shutter
The number of hinges and their positioning can be set in the Advanced section
Find some general advice for using meshes from external sources on the Customization page.
![image 10c.jpg image](../images/architecture/2024/door-overview/10c.jpg)
![image 11.jpg image](../images/architecture/2024/door-overview/11.jpg)
Custom Door Blueprint
The BP_CustomDoor blueprint allows the use of any frame and mesh available from outside the DoorsBPV2 package. With a bit of practice, you can set up doors for gates or other less architectural applications.It's a bonus blueprint, so don't expect wonders :)
![image 12.jpg image](../images/architecture/2024/door-overview/12.jpg)
![image 13.jpg image](../images/architecture/2024/door-overview/13.jpg)
![image 14.jpg image](../images/architecture/2024/door-overview/14.jpg)
![image 15.jpg image](../images/architecture/2024/door-overview/15.jpg)
![image 16.jpg image](../images/architecture/2024/door-overview/16.jpg)
