V4 - Spline Tools Function Library - Part 2

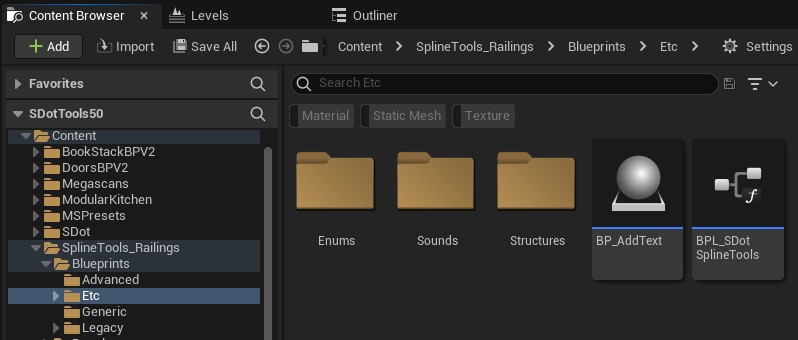

BPL-SDotSplineTools contains the functions needed to create the blueprints in this project. The functions can be used in any blueprint within a project were the library is present.
Part 2 covers Spline Segment and Spline Mesh nodes.

Content:
Spline Segment Dividers - 2 Segments
Segments with Additional Placements

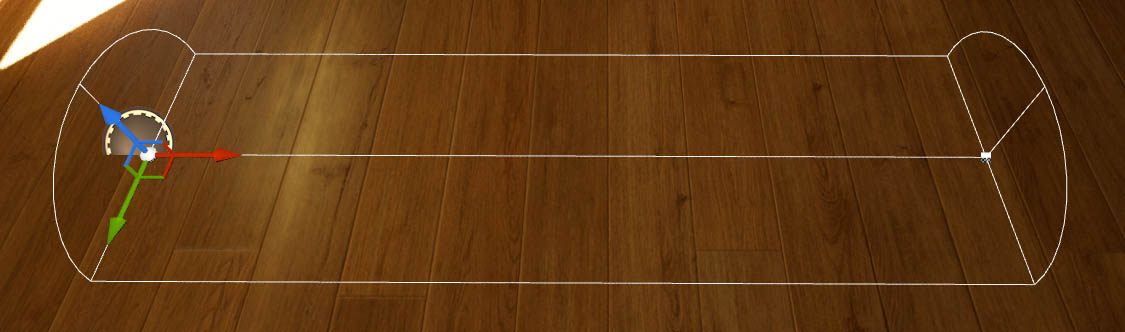

- Rotate the entire spline by selecting the root of the blueprint
- The little squares represent the spline points. Click on them to move them around
- Use the 2 handles to rotate a spline point. Do not manually rotate the spline point itself
- Right click on the spline or spline point to add, modify or delete spline points
Blueprint Spline - Unreal Documentation

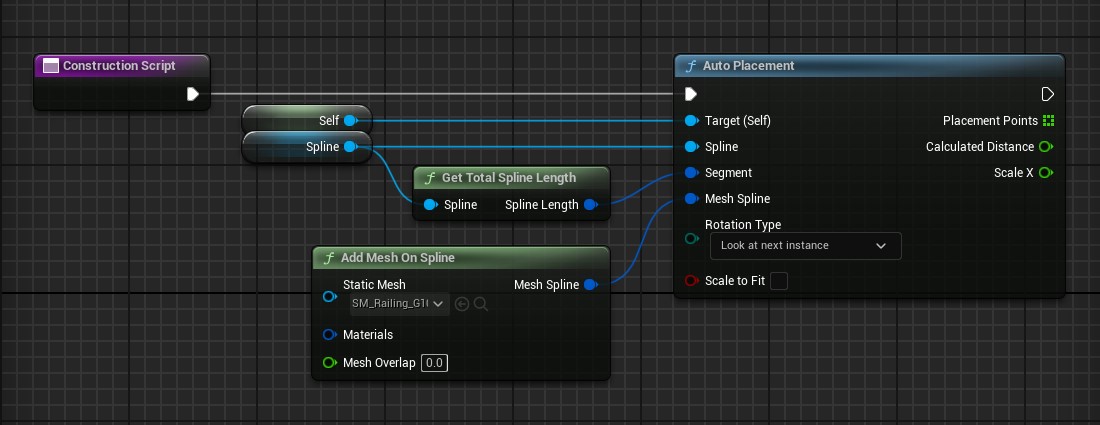

Total Spline Length
Total Spline Length
Always start with getting the total spline length from the Spline component then divide the total spline length if necessary.
Spline Segment A A
A - A will divide the segment into two equal sized halves.

Spline Segment Dividers - 2 Segments

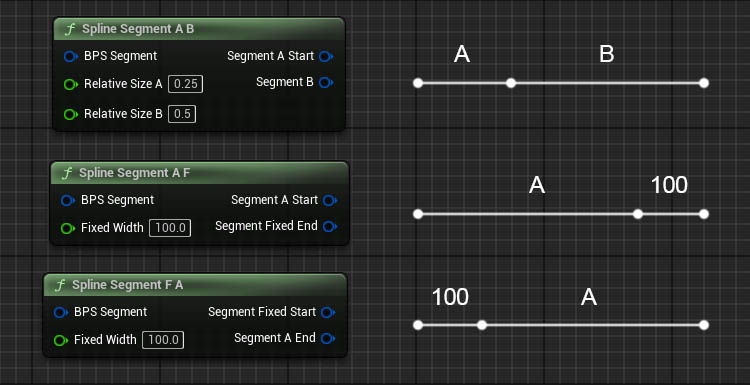

Spline Segment A B
Divides the segment into two parts sized relative to the values set in A and B
Spline Segment A F
splits off a fixed segment at the end with the width set.
Spline Segment F A
splits off a fixed segment at the start with the width set.

Segments with Additional Placements

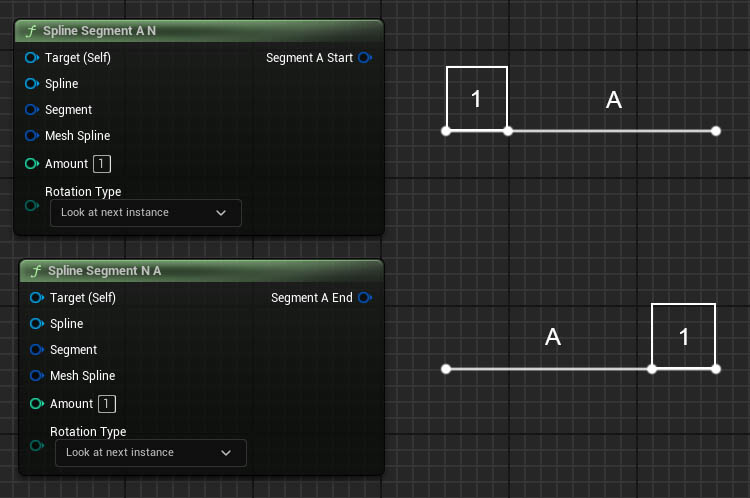

Spline Segment A N
Adds N numbers of a mesh defined in Spline Mesh at the end of the segment. The remaining segment is provided in the output pin.
Spline Segment A N
Adds N numbers of a mesh defined in Spline Mesh at the start of the segment.

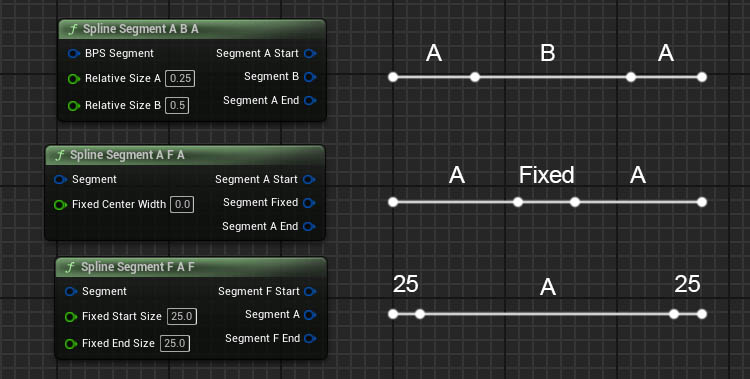

Spline Segment Dividers - 3 Segments
Spline Segment A B A
Divides the segment into a center segment with 2 equal sized segments on each size.
The size will be relative to the values entered for A and B.
Spline Segment A F A
Divides the segment into a fixed center segment with 2 equal sized segments on each size.
The size in the center will be fixed.
Spline Segment F A F
Splits off 2 fixed size segments on either end of the spline segment. Segment A will have the remaining size.

Segment Repeater

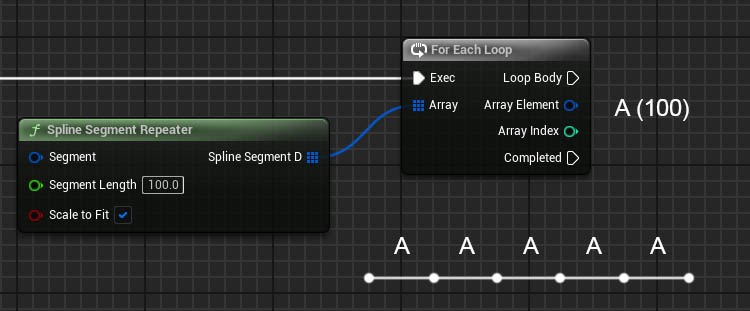

Spline Segment Repeater
Divides the segment into equal sized parts when combined with a For Each Loop
Scale to Fit adjusts the Segment Length to the closest value so the entire given spline segment will be used.

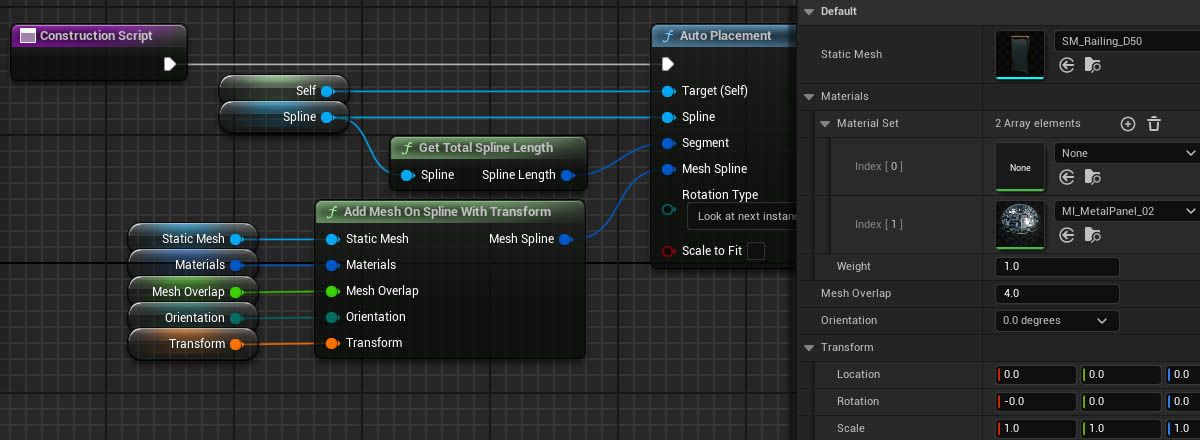

Mesh On Spline
Mesh on Spline nodes define the static meshes to be placed on the spline.- Mesh On Spline
- Mesh On Spline with Transform
There is also an option taking a random element from an array of meshes or materials.
- Random Mesh On Spline

> Static Mesh | The static mesh that should be placed [WIP*]: A random mesh will be picked per mesh placement If more than one mesh has been added. |
> Materials | [WIP*] A random set will be picked per mesh if more than one set has been added. |
> Material Set | Materials set for the mesh as they would be added in the static mesh editor |
index [ 0 ] | Material for index [0]. Empty slots are being ignored. |
Overlap | How much the mesh placements overlap. Negative values will create a gap. |
Orientation | Z axis rotation of the static mesh on the spline. Affects the size calculations. Use this for the initial rotation. |
Transform | A transform for all meshes relative to the spline point. |
* Work in Progress

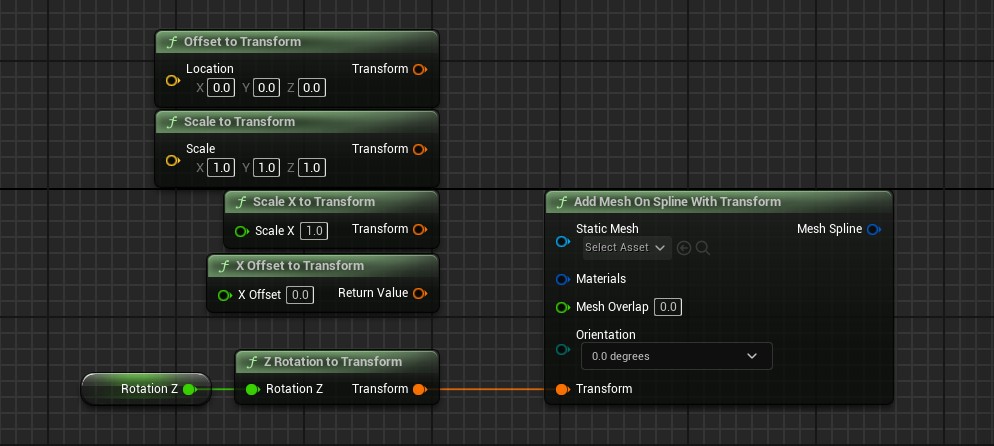

... To Transform Nodes
Type to transform into the search box to find these nodes.
They can be used to simplify the transform input if only one axis or transform type needs to be modified.

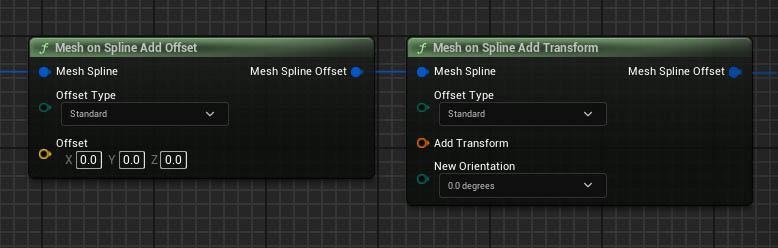

Additional Transforms
Offset Type | - Standard: relative transform added for all
meshes - Incremental: incremental transform added per mesh - Random: random transform added per mesh within the set range |
Random Offset Type
The values in the transform are used as a random range
- Location and Rotation: 25.0 will offset between -25 and +25
- Scale: 1.25 will scale between 0.75 and 1.25

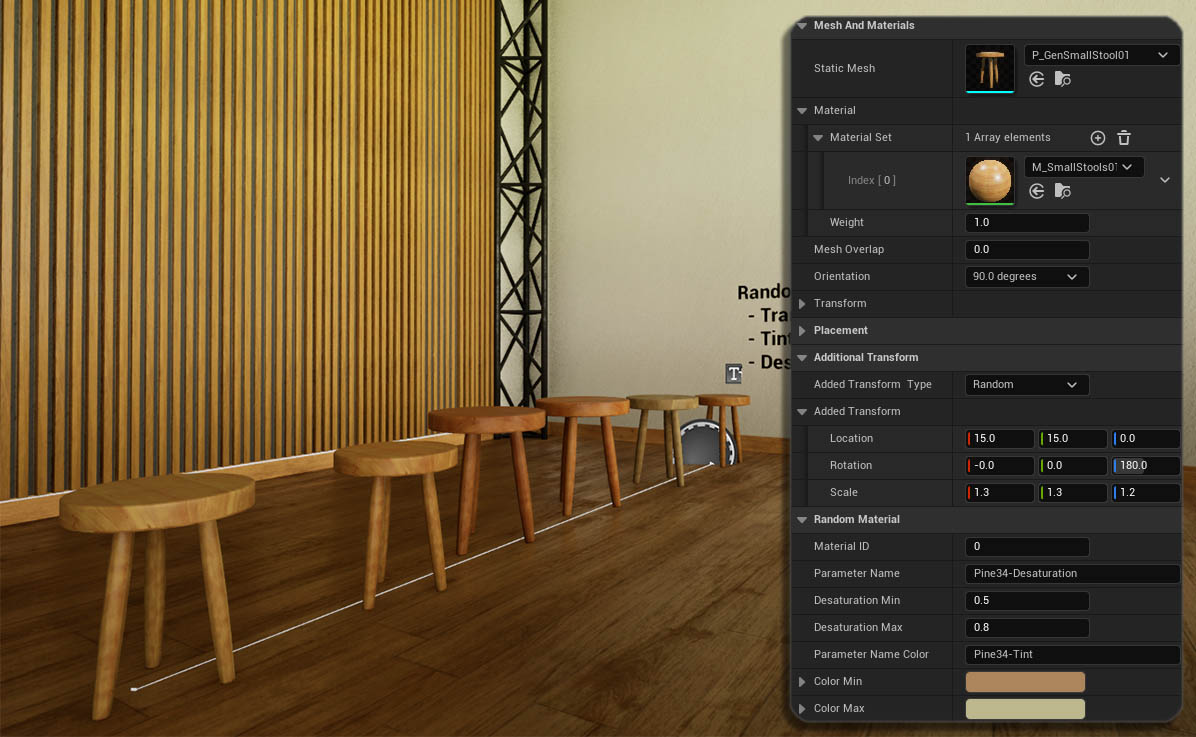

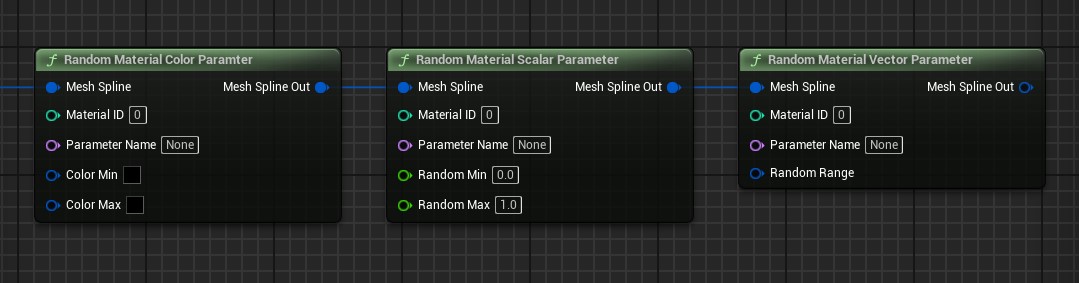

Material Parameter Randomizer
Can randomly modify named material parameters for each mesh placed.- Random Material Color Parameter: colors
- Random Material Scalar Parameter: simple variables
- Random Material Vector Parameter: 2D-3D-4D Vectors

Material ID | affected material ID |
Parameter Name | parameter name to be randomly modified |
Min / Max | will pick a random value between min and max values. |
Random Range | Vector Random Range: 0.5 will pick a random value between -0.5 and 0.5 |
