Modular Kitchen - System Drawings
Drawings for reference showing
- module sizes
- front and crown styles
- cabinet types
- appliance cabinet types and positioning
- corner cabinets, bench overhangs and side panels
Content:
Modules and Cabinet Types

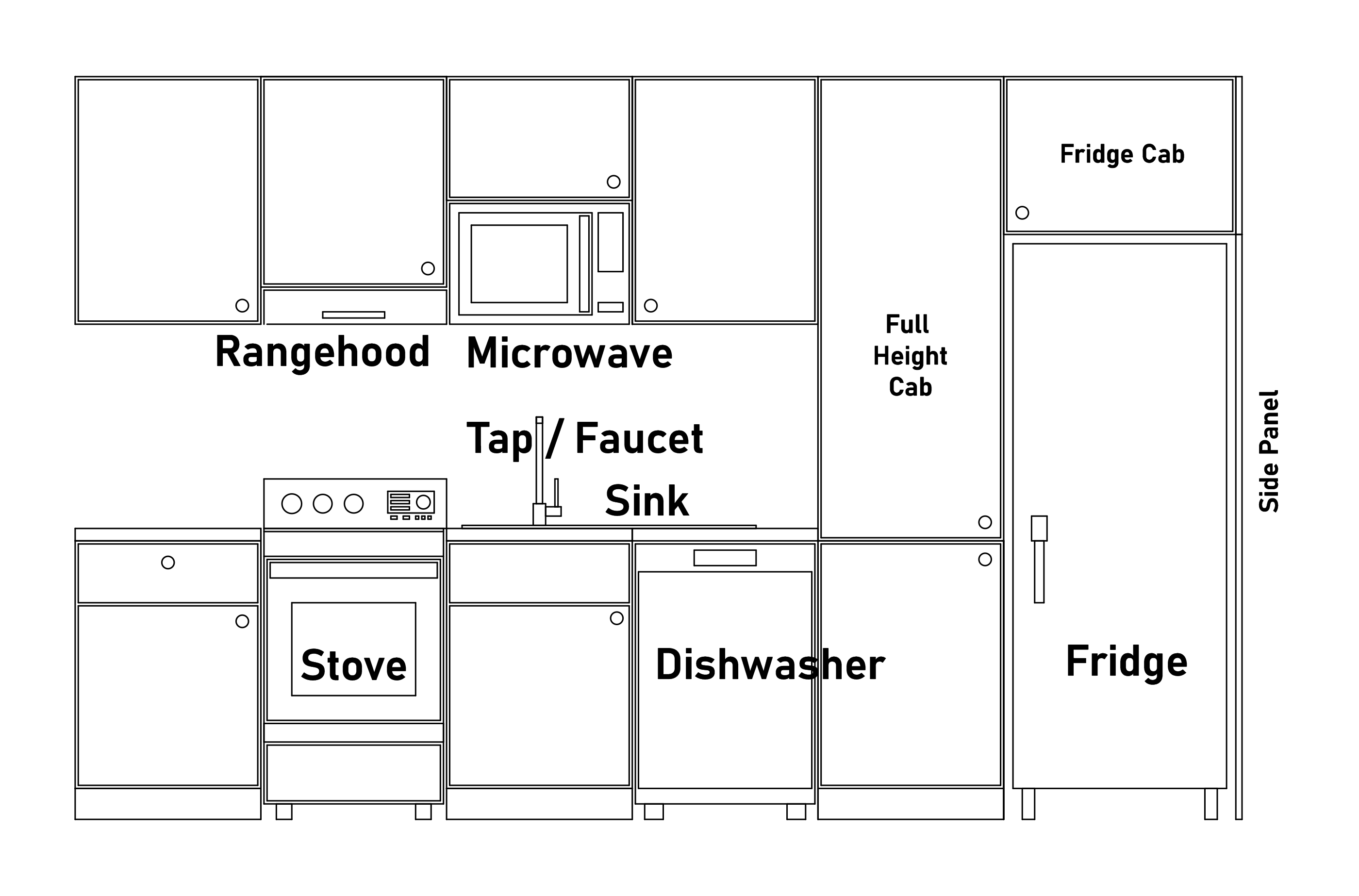

The Modular Kitchen Builder creates a kitchen from an array of modules. Each array index is one module. The origin of the kitchen is on the back wall of the left side.The image shows the cabinet types and their position.
Module Widths
Modules can have a width of 30 - 45 - 60 - 75 - 90 cm.Modules are 12 - 18 - 24 - 30 - 36 inches wide.
30cm are a bit less than 12 inches for our non-metric users. You
The height will always be metric.
Sizes can be overwritten with exact values.
Cabinets and Fronts

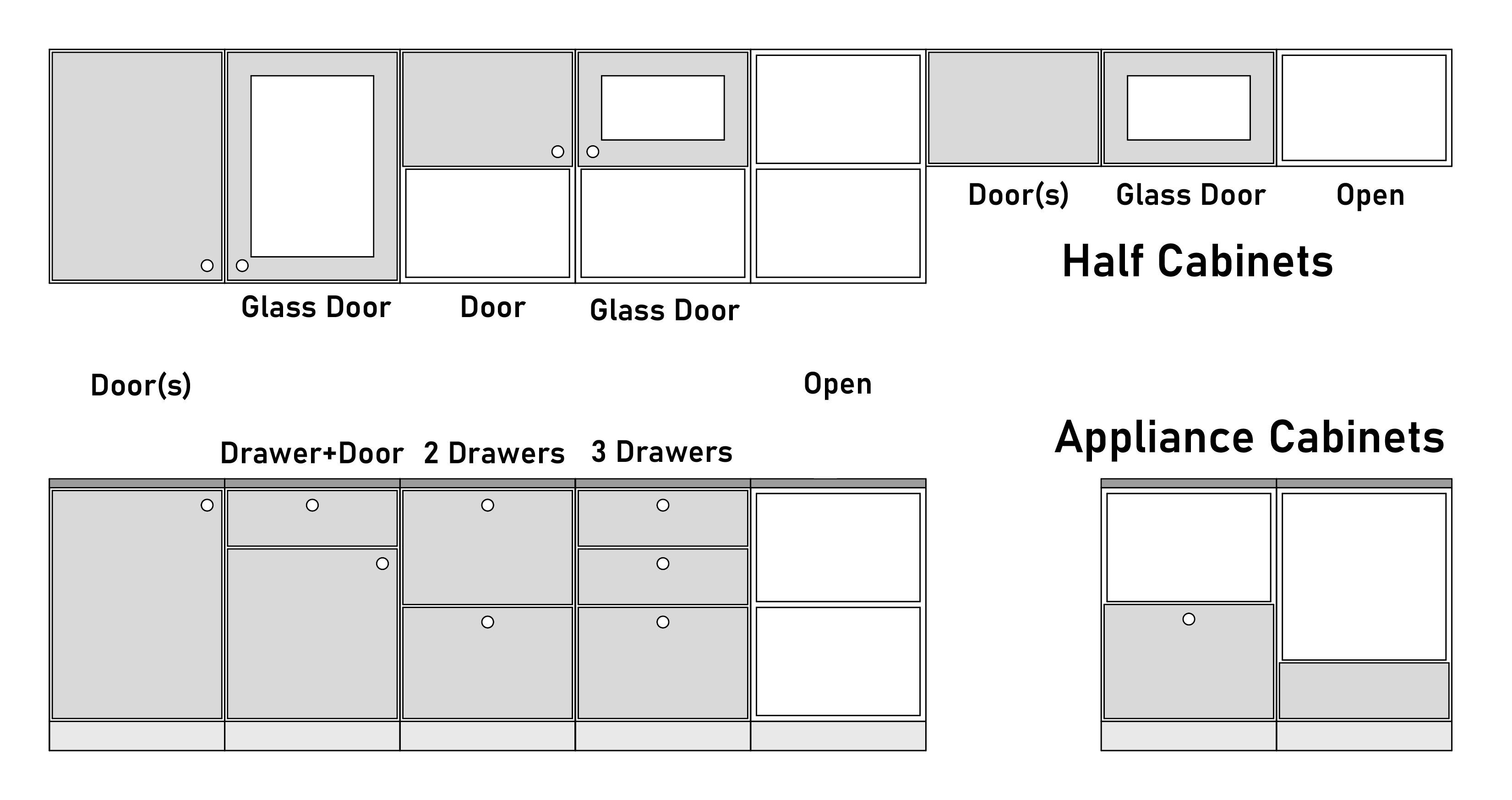

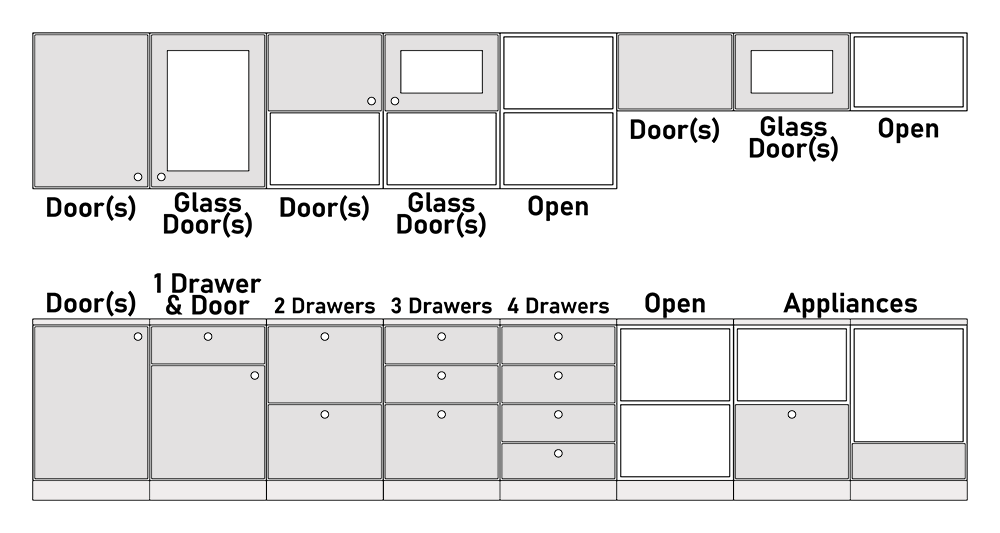

Top and Wall Cabinet types.

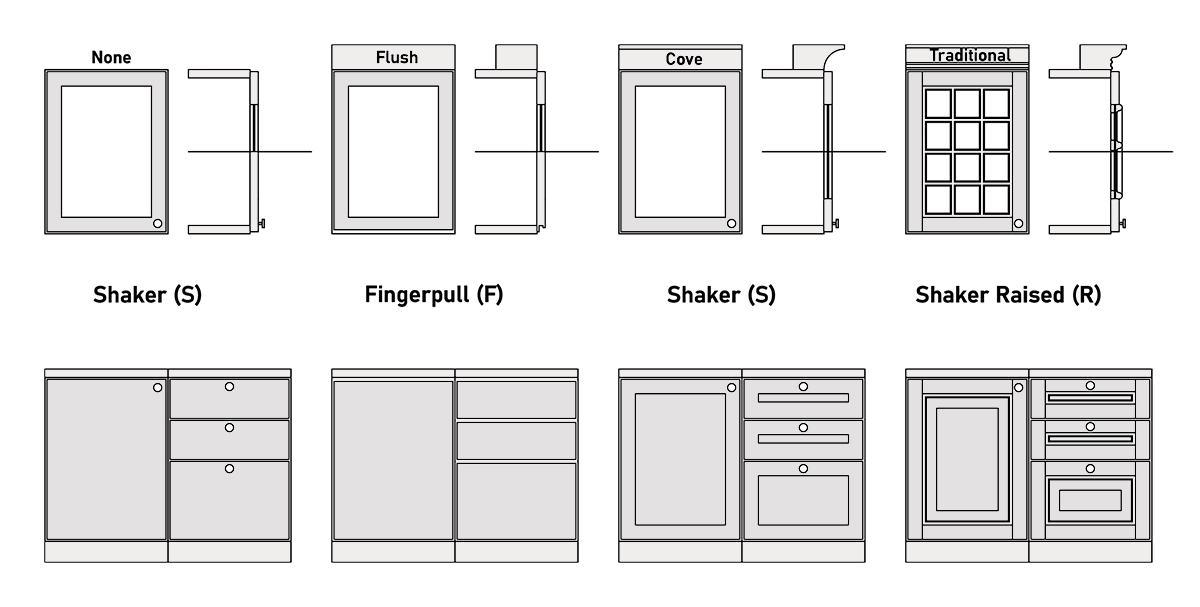

Front and Crown Styles
Cabinet Front Styles- Flat
- Shaker
- Shaker Raised
Appliance Cabinets
Cabinets for Built in Appliances are 60cm deep.Built in Appliances generally come in 3 sizes:
- Standard: 60cm x 60cm (24 x 24 in)
- Compact: 60cm x 45cm (24 x 18 in)
- Wide: 90cm x 48cm (36 x 19 in)
Cabinet Sizes

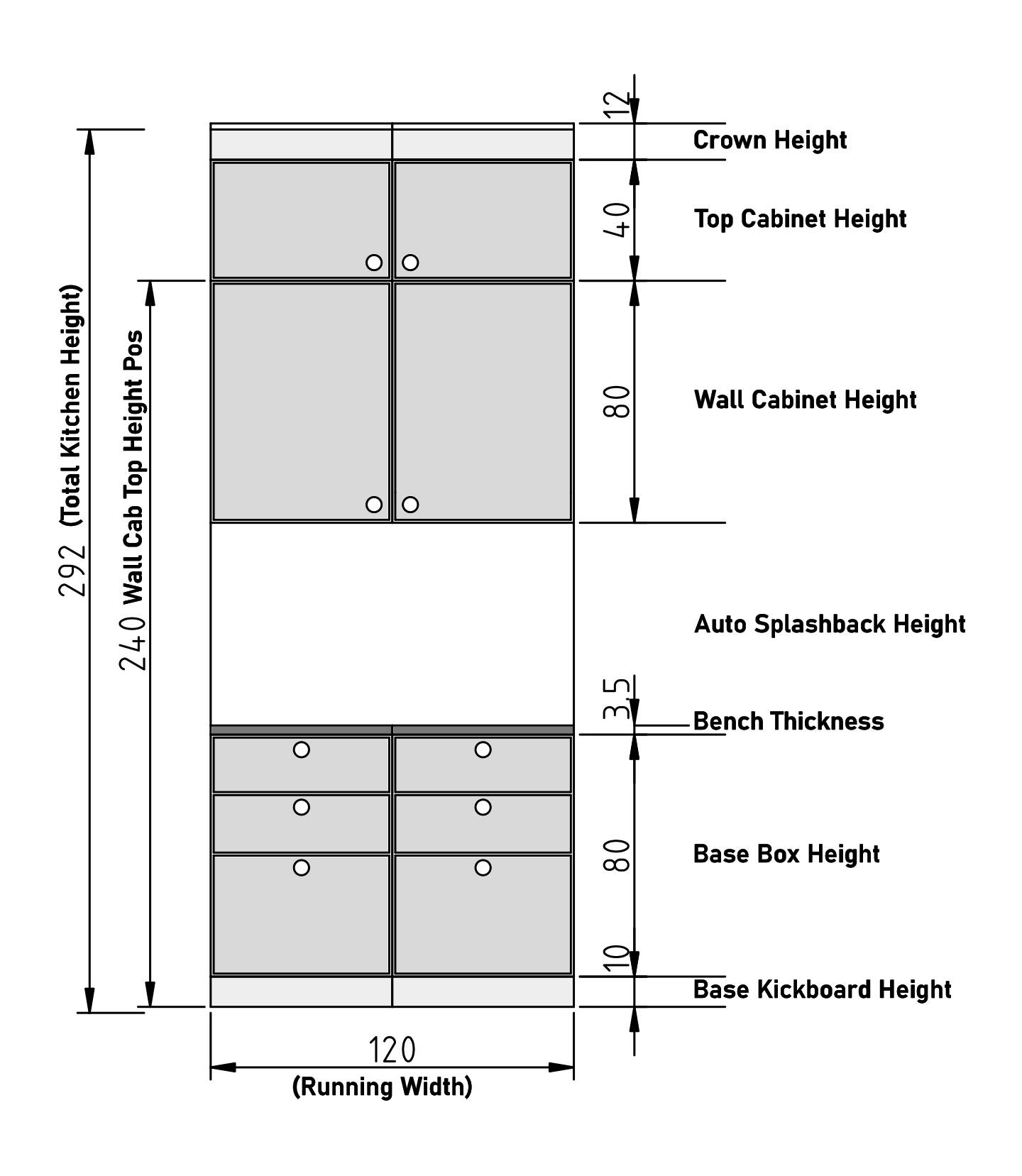

Default Cabinet Sizes. The height of the splash back depends on all other heights.
Cabinet Height Offsets
Fridge and Wall Cabinets can be offset to align with the appliances used.Splash back extends to the underside of the wall cabinet by default. A custom height can be set for all splash backs and then be adjusted for each modul.
L-Shaped and U-Shaped Kitchens
Assemble L or U-shaped kitchen layouts with 2 or 3 kitchen blueprints attached to each other.

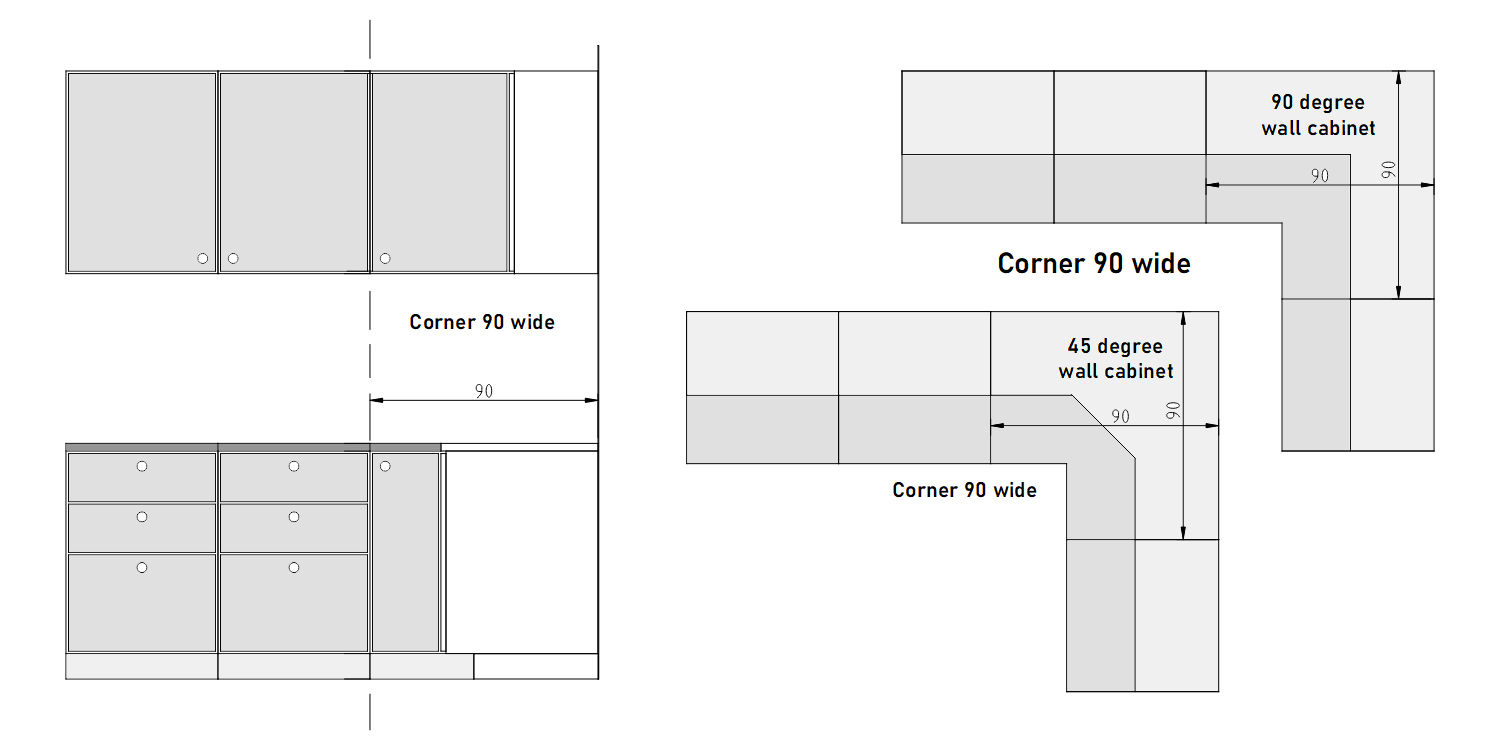

Corners Cabinets 90 cm wide
Corner cabinet with 90 cm or 36 inches width.

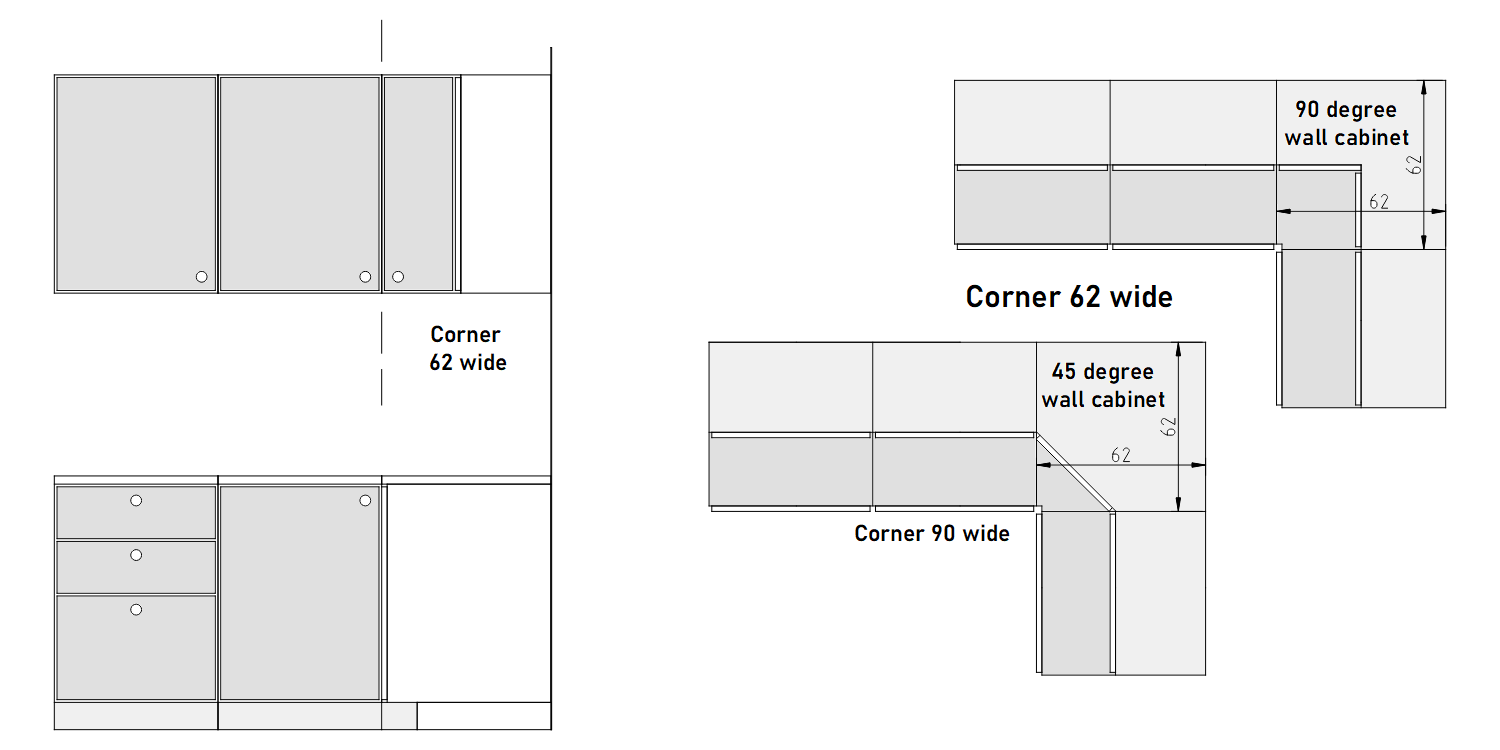

Corner Cabinet 62 cm wide
Corner Cabinet 62 cm or 24 inches wide.
Bench Overhang and Cabinet Sides
Offsides for Benches and Side Panel positioning
